Note: this is pre-order, the expected delivery date will be around end of August.

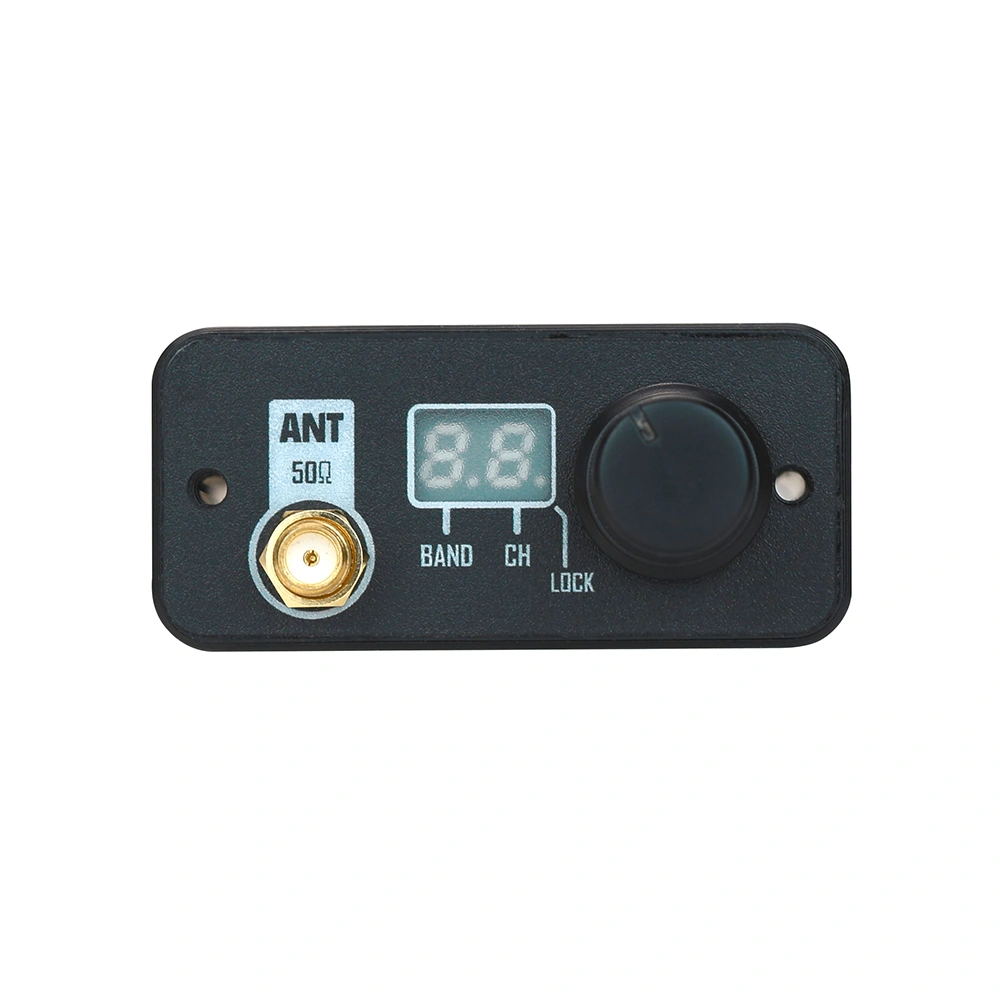

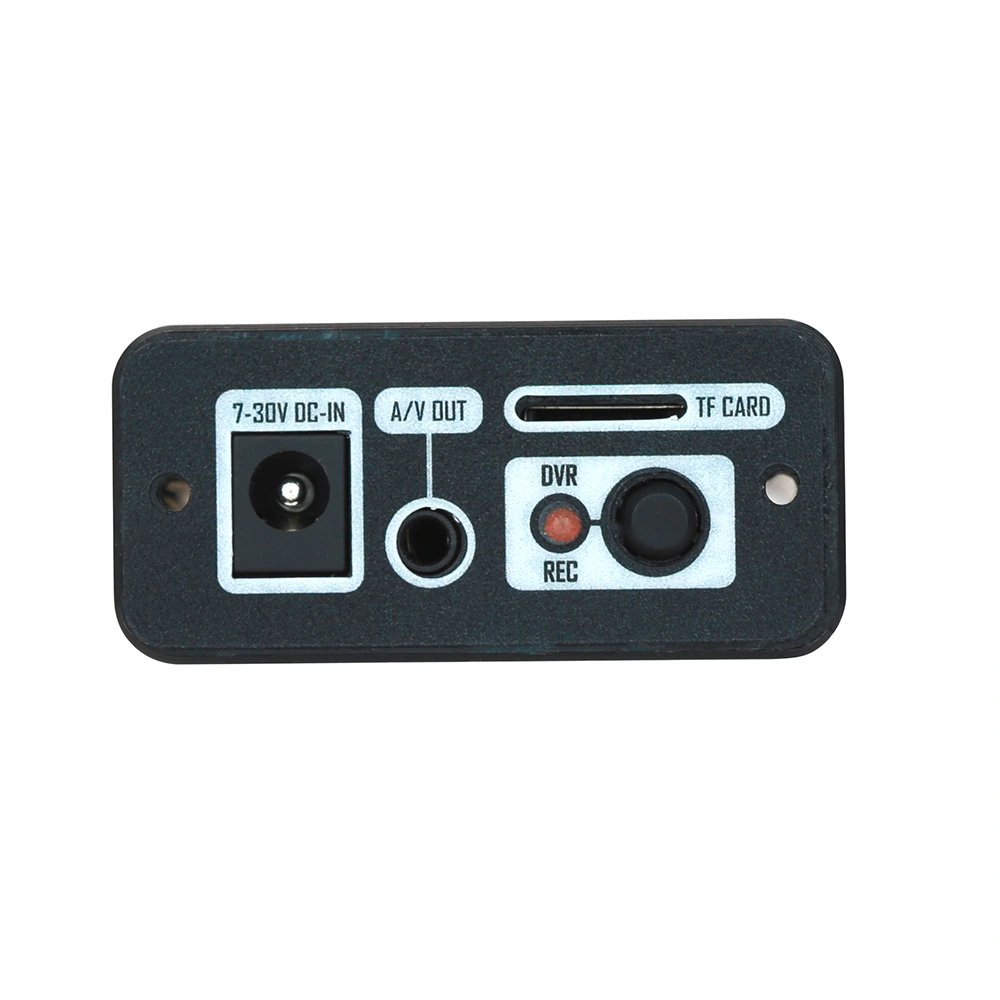

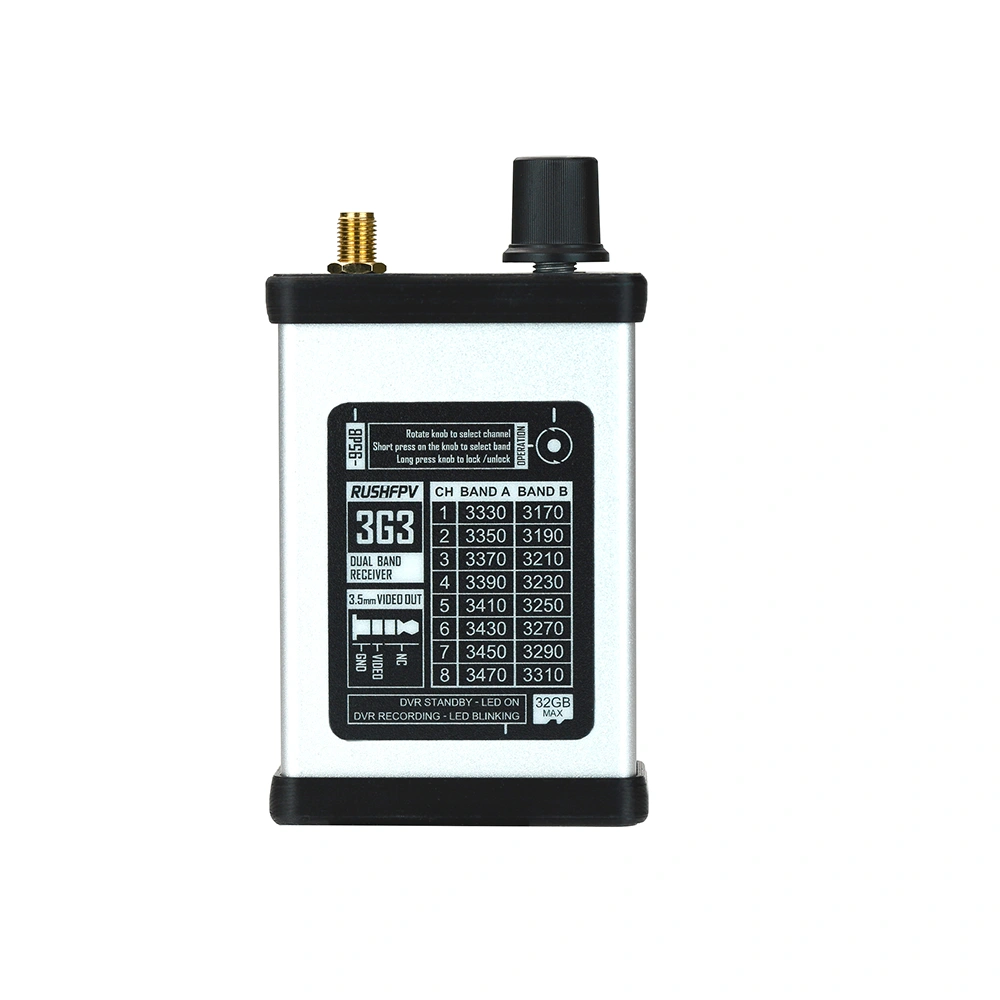

RUSHFPV 3.3GHz Video Receiver with High-Gain Directional Antenna and Optional DVR

The RUSHFPV 3.3GHz Video Receiver is designed for uncompromising performance and reliability. This state-of-the-art receiver features a customized digital PLL circuit and chip-level integration, ensuring no frequency drift and exceptional sensitivity up to -95dBm across all channels.

Key Features:

• Customized Digital PLL Circuit: Achieve stable, drift-free performance with our high-integration chip design.
• Optional Built-in DVR Module: Record your flights effortlessly with the optional CVBS 30fps DVR.
• Rugged Aluminum Alloy Housing: Durable construction with digital display and easy-to-use knob.
• High-Gain Directional Antenna: The multi-unit antenna provides a narrow beam angle and an impressive 15.8 dBi gain.
• Complete Quality Control: Thorough QC for all vRX and antenna production ensures top-notch reliability.

Specifications:

• VRX Module:

  • Video Output: CVBS NTSC/PAL
  • Frequency: BAND-A 3330-3470MHz (8 channels), BAND-B 3170-3310MHz (8 channels)
  • Sensitivity: <-95dBm
  • DVR: CVBS 30fps (Optional)
  • DC Input: 7-30V
  • Connector: SMA
  • Dimensions: 58x27x101mm
  • Weight: 103g

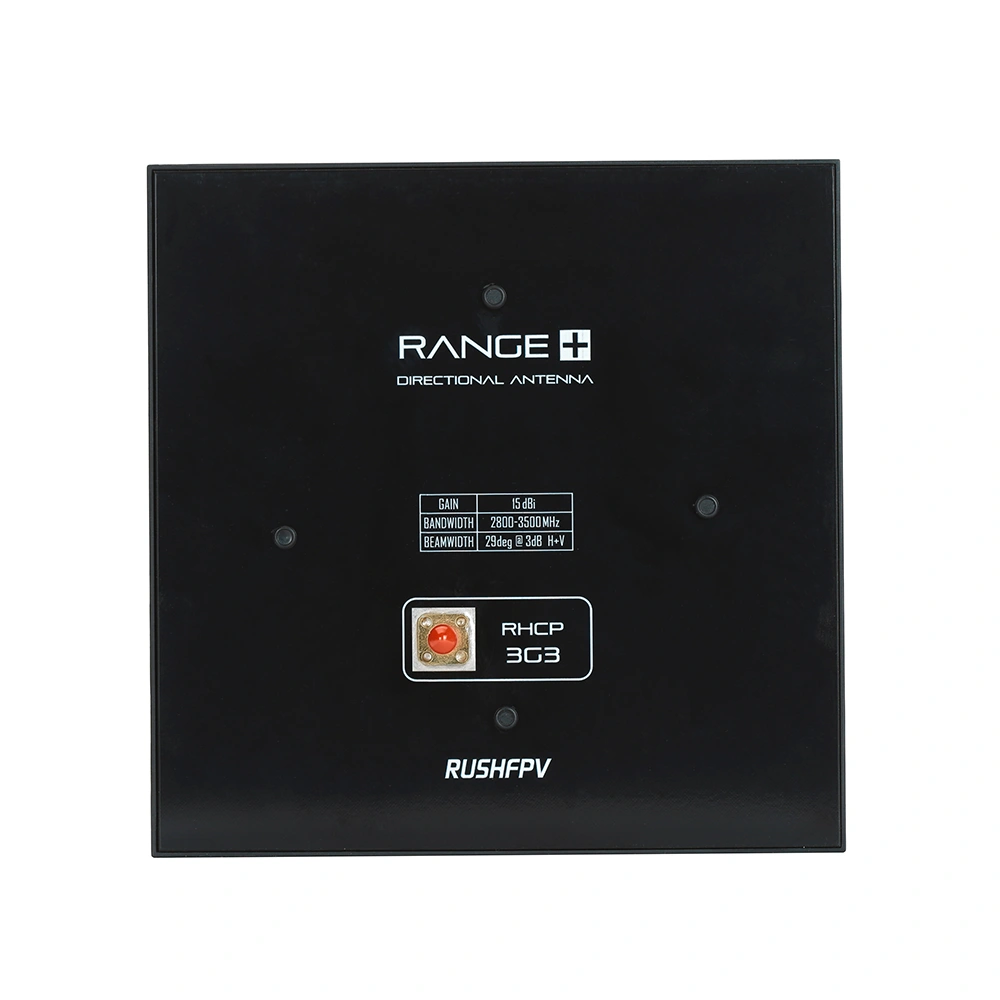

• Directional Antenna:

  • Polarization: LHCP/RHCP
  • Bandwidth: 3150-3500 MHz
  • Beamwidth: 29 degrees @3dB H+V
  • Gain: 15.8 dBi
  • V.S.W.R: <1.3
  • Cable: RG178 (Adapter Cable)
  • Connector: SMA
  • Dimensions: 174x174x16mm
  • Weight: 196g

Package Includes:

• 1x 3.3GHz Video Receiver
• 1x 15.8 dBi Patch Receiving Antenna
